PD-GM-04 Magnesium Aluminum Zinc steel material suitable for large scale solar ground screw mounting system, or solar park ground mount pv racking systems
PD-GM-04
Ground Clearance:200mm-1000mm
Tilt Angle:10-40°
Wind Speed: 0-60m/s
Snow Load:0-150cm
Preformance:High Corrosion Resistance
Drawing: Available
Strength Report: Available
CAD ： Available
Support: Mark the ramming pilling plan
About Panda solar Magnesium Aluminum Zinc Ground Mounting Systems For Solar Panels：
The solar PV ground mounting system is the same as the solar PV roof mounting system, both are structures under the supporting solar panels, the ground solar panels are the same as the roof solar panels, the only difference is that the solar panels are installed on the ground instead of the roof, and different installation structure foundation: ①Standard double column foundation ②Single column/a pole foundation ③Concrete ballast foundation , and all solar ground mounting structure can with different materials.
PD-GM4 is a design of No.4 solar ground brackets developed by Pandasolarpv. It uses galvanized steel magnesium aluminum zinc material and double-column structure, solar panel racking system ground mount can meet the requirements of landscape and portrait solar panels. Reducing the shading at the bottom of the solar panel is the maximum power output of the solar panel.

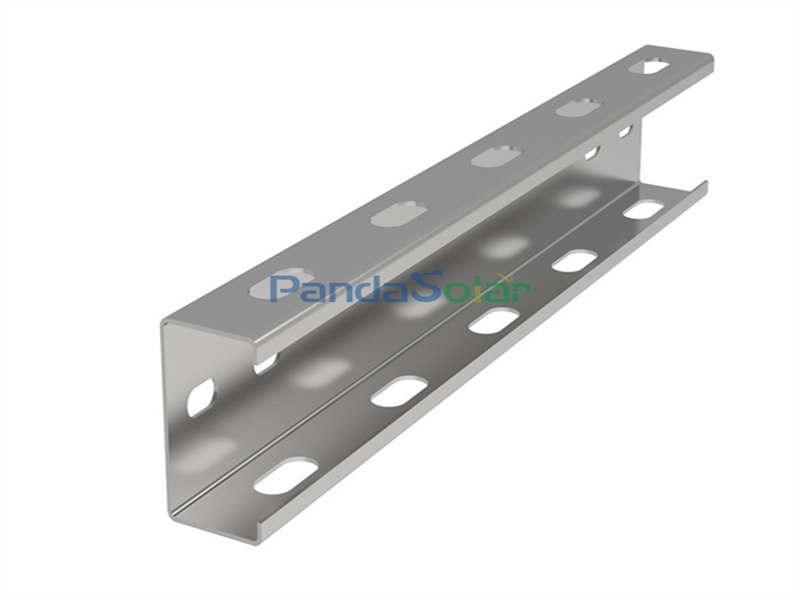

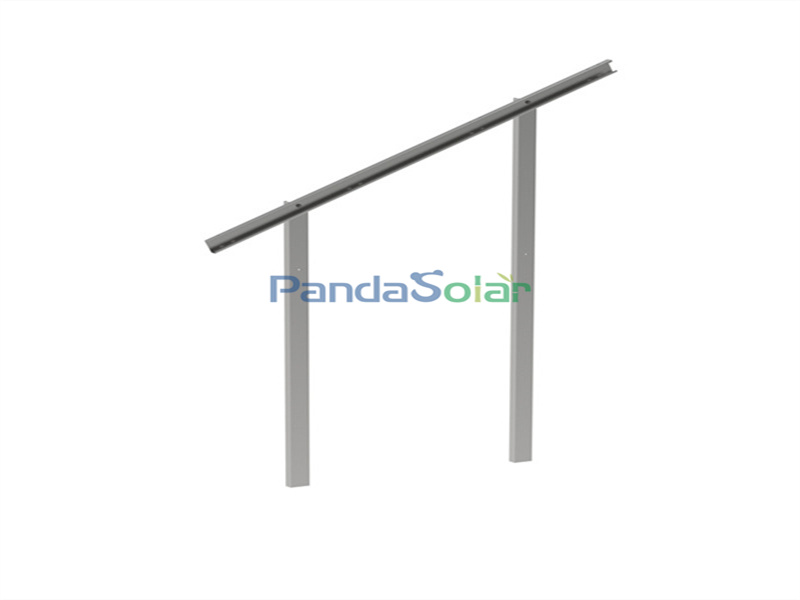

PD-GM-04 solar mounting piling structure with two legs C steel, the horizontal beams and longitudinal beams of the main support are all made of C-shaped steel, and the high-strength structure ensures the stability of the structure.
PD-GM-04 large scale solar mounting has a sufficient adjustable range to allow maximum tolerance for on-site installation.
Structural features:
Workshop-Aluminum Material:
PandaSolar have a professional aluminum alloy product processing workshop, cutting, drilling, stamping, forging and other work are completed independently.
Professional production team can accept products with high customization/precision requirements.
Workshop-Steel Material:
PandaSolar have a professional steel/Magnesium aluminum zinc/S350GD/S450GD processing workshop as well, 6 production lines, and several molding machines. According to different projects, it can complete cutting and holes processing, with productivity of 40-50MW per month.
Certificates:
All products of pandasolar: SOLAR MOUNTING BRACKET SYSTEM / SOLAR MOUNTING HOOKS / SOLAR MOUNTING CLAMP/ SOLAR ROOF MOUNTING have passed CE certification and can be sold in the European market smoothly.
Project Cases:
PandaSolar packaging department professionally packages different products.
For standard items:
For aluminium rail items:
For C steel profile items:
FAQ:
♥: What's your delivery time?
A: For stock：3days, 12days for new production
♥: Can you send the samples?
A: Yes, free samples for your test.
♥: Are you manufacture?
A: Yes, Our production experience is more than 12 years.
♥: Do you have OEM service?
A: Yes, we accept OEM service.
♥: How can I get the best price?
A: Send an inquiry to us and a professional will quote you.
