HDG material ground mounting system, connected holes for easy installation
PD-GM-03
Ground Clearance:200mm-1000mm
Tilt Angle:10-40°
Wind Speed: 0-60m/s
Snow Load:0-150cm
Preformance:High Corrosion Resistance
Drawing: Available
Strength Report: Available
CAD ： Available
Support: Mark the ramming pilling plan
About Panda solar All Hot Dip Galvanized Solar Panel Ground Mounting Frame Systems：
The Galvanized Steel Solar Brackets is the same as the roof solar bracket system, both are structures under the supporting solar panels, the ground solar panels are the same as the roof solar panels, the only difference is that mounting solar panels on ground instead of the roof, and different installation structure foundation: ①Standard double column foundation ②Single column/a pole foundation ③Concrete ballast foundation , and all solar panel ground mounting bracket can with different materials.

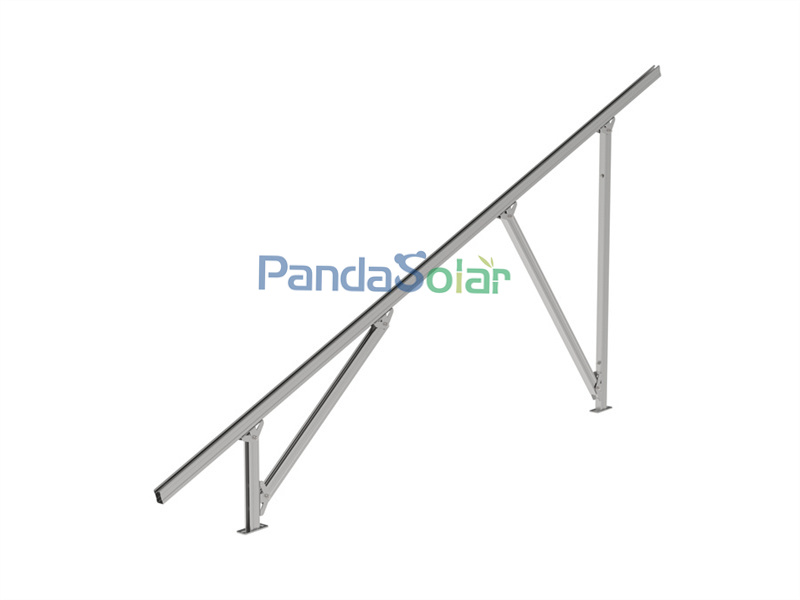

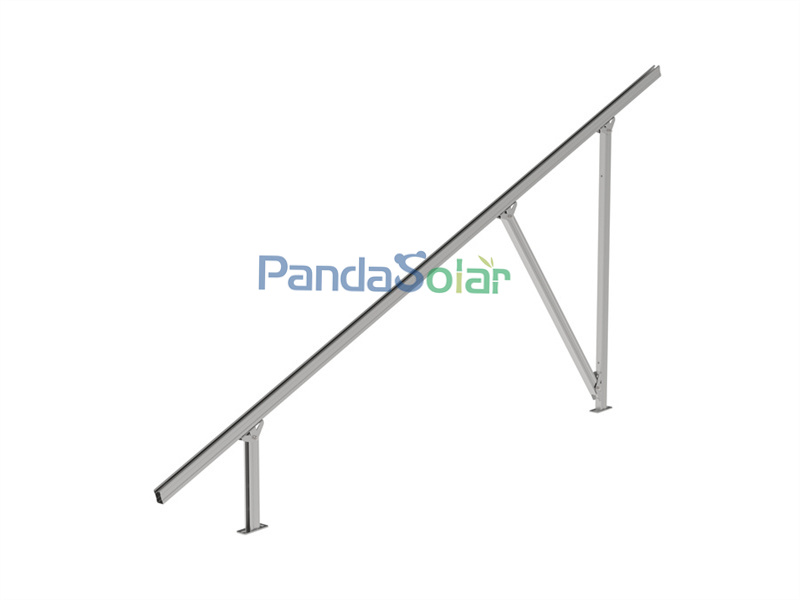

PD-GM-03 is the No.3 HDG solar ground structure design developed by PandaSolar, which is made of fully hot-dip galvanized steel.
The thickness of hot-dip galvanizing reaches 80μm, which meets the environmental conditions of most countries
The structural frame has continuous rows of holes, the installation fault tolerance rate is large, and the installation is simple and greatly reduces the construction cost.

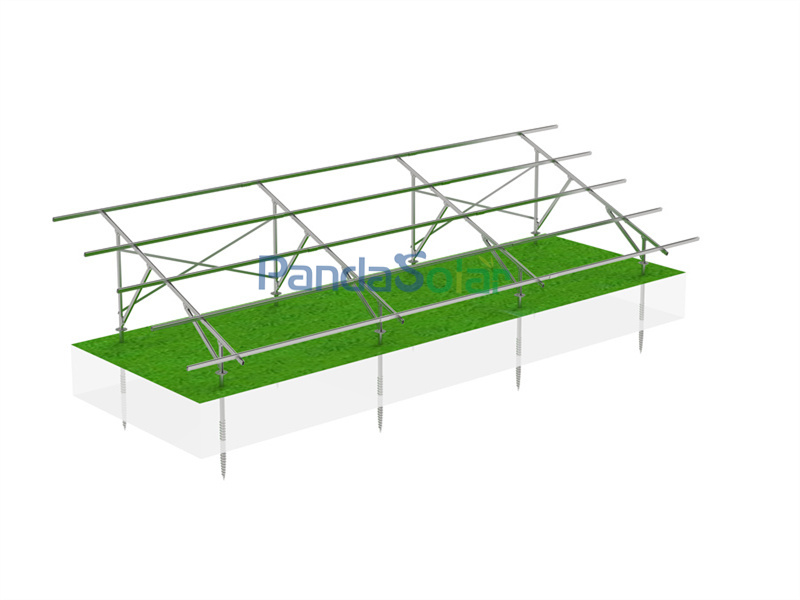

GM3 HDG solar mounting system is usually use ground screw foundation, 1200mm, 1600mm, 1800mm or 2000mm height to meet different geological conditions.
Structural features:
Project Cases:
Workshop-Aluminum Material:
PandaSolar have a professional aluminum alloy product processing workshop, cutting, drilling, stamping, forging and other work are completed independently.
Professional production team can accept products with high customization/precision requirements.
Workshop-Steel Material:
PandaSolar have a professional steel/Magnesium aluminum zinc/S350GD/S450GD processing workshop as well, 6 production lines, and several molding machines. According to different projects, it can complete cutting and holes processing, with productivity of 40-50MW per month.
Certificates:
All products of pandasolar: SOLAR MOUNTING BRACKET SYSTEM / SOLAR MOUNTING HOOKS / SOLAR MOUNTING CLAMP/ SOLAR ROOF MOUNTING have passed CE certification and can be sold in the European market smoothly.
PandaSolar packaging department professionally packages different products.
For standard items:
For aluminium rail items:
For C steel profile items:
FAQ:
♥: What's your delivery time?
A: For stock：3days, 12days for new production
♥: Can you send the samples?
A: Yes, free samples for your test.
♥: Are you manufacture?
A: Yes, Our production experience is more than 12 years.
♥: Do you have OEM service?
A: Yes, we accept OEM service.
♥: How can I get the best price?
A: Send an inquiry to us and a professional will quote you.
