It's aluminum solar PV ground screw solar system. Two ground screw solar mounting foundation, suitable for large-scale project installation.
Product Details
| Name: | PD-GM-01 |
| Ground Clearance: | 200mm-800mm |
| Tilt Angle: | 10-40° |
| Wind Speed: | 0-60m/s |
| Snow Load: | 0-150cm |
| Preformance: | High Corrosion Resistance |
| Drawing: | Available |
| Strength Report: | Available |
| Warranty: | 12years |
PandaSolar Solar Panel Ground Screw Mounting Bracket System
Basic Info.
| Model No. | PD-GM01 |
| Material | Aluminum Alloy |
| Color | Silver |
| Snow Load | 1.4 Kn/M2 |
| Surface Treatment | Anodized |
| Lead Time | 7-15 Days |
| Tilt Angle | Depends |
| Transport Package | Steel Plate |
| Production Capacity | 40WM/Month |
| Trademark | PandaSolar |
| Application | Commercial |
| Type | Ground Bracket |
| Samples | Free Samples |
| Wind Speed | 60 M/S |
| Port of Loading | Xiamen Port |
| OEM | Acceptable |
| Specification | Component: AL6005-T5; Parts: AL6005-T5/SUS304 |
| Origin | Fujian, China |
What's PandaSolar Solar Panel Ground Screw Mounting Bracket System ?
The aluminum PV mounting system is mainly made of aluminum alloy(Al-6005-T5) with two ground screw foundation, Aluminium solar ground mounting system is suitable for large-scale installation and integration into the power grid, and can also be installed in residential areas for household electricity.
Structural features:

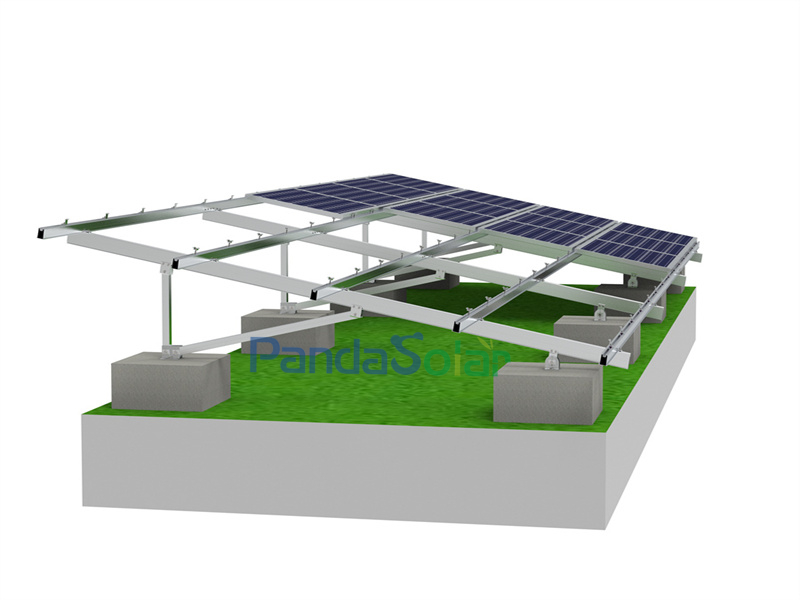

4. Have different solar structure design for choose: A shape, N shape, VI shape and W shape
Easy Installation Only Need Tour Steps:

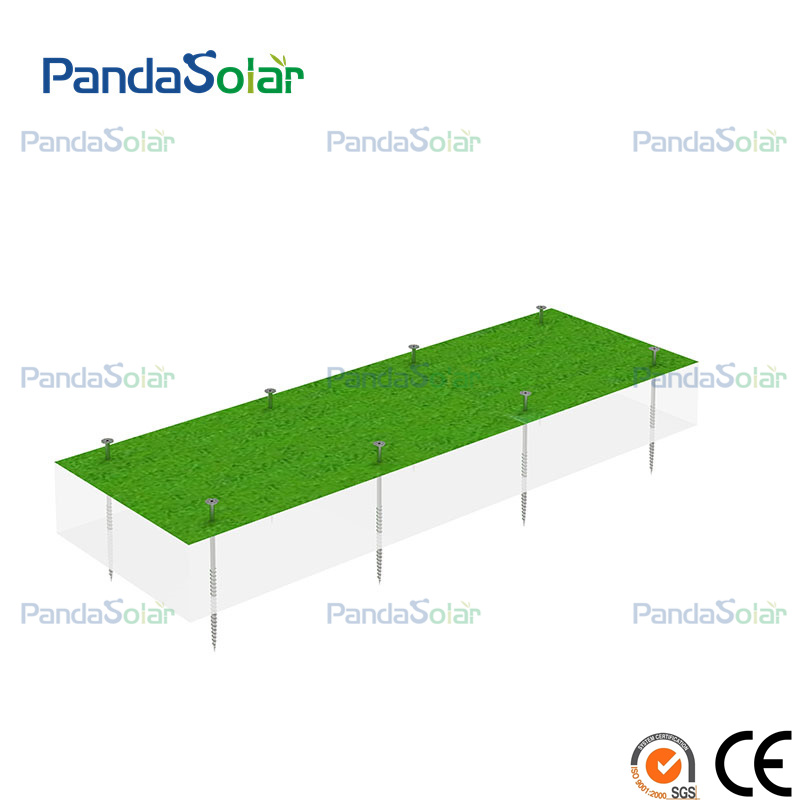

STEPS 01
Install solar ground screws into the suitable point and keep on a parallel line

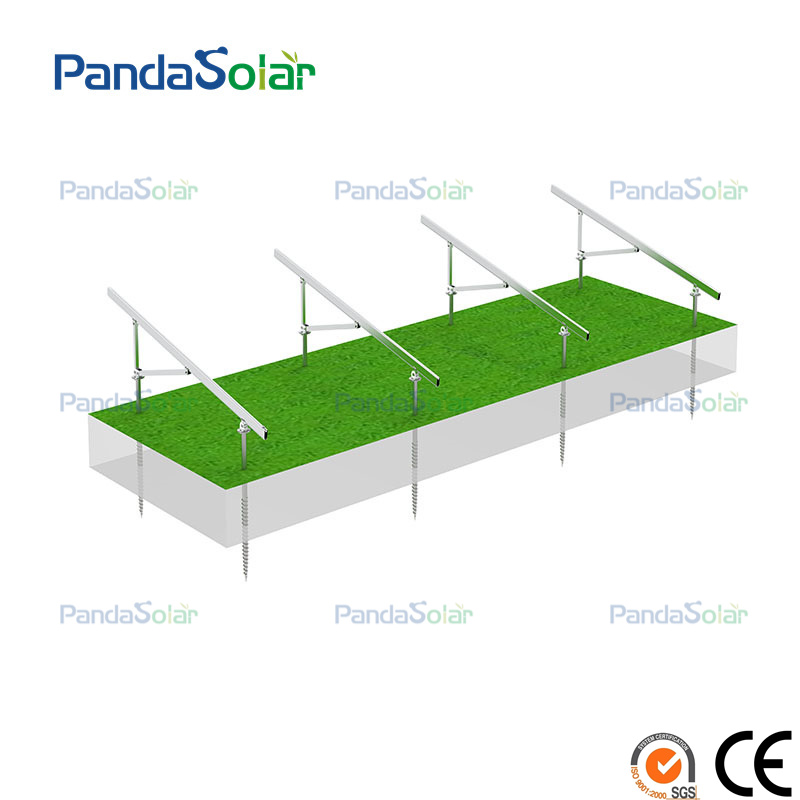

STEPS 02
Unfold the pre-assembled brackets and lock the "H" profile on the beam by responsible bolt and nut, then, put the competely brackets on the ground screws plate and fasten by bolt and nut matched.

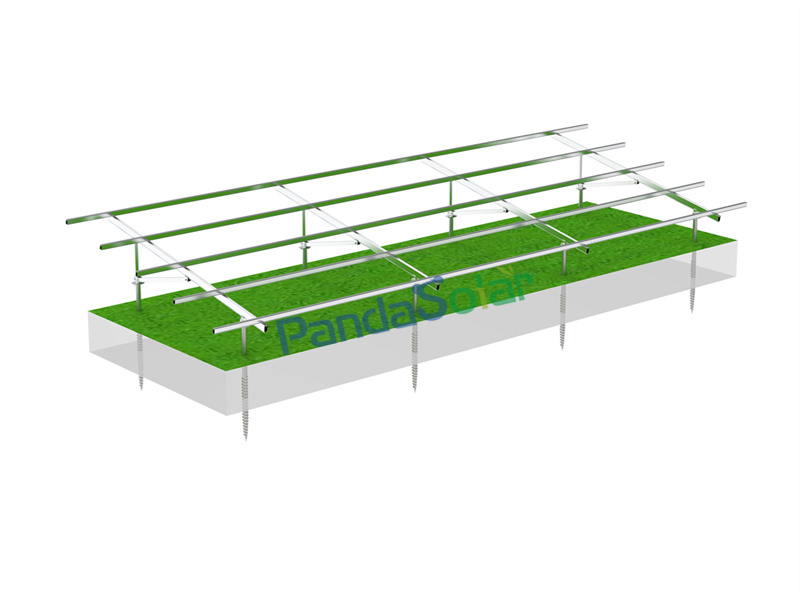

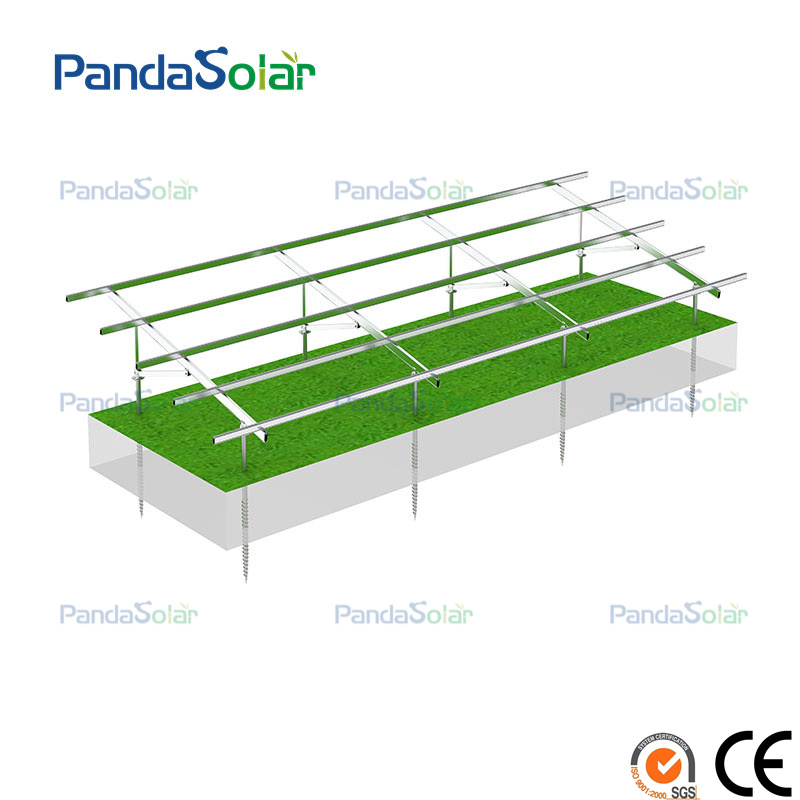

STEPS 03
Install solar rails on the beam and fasten them by matched solar rail clamps.

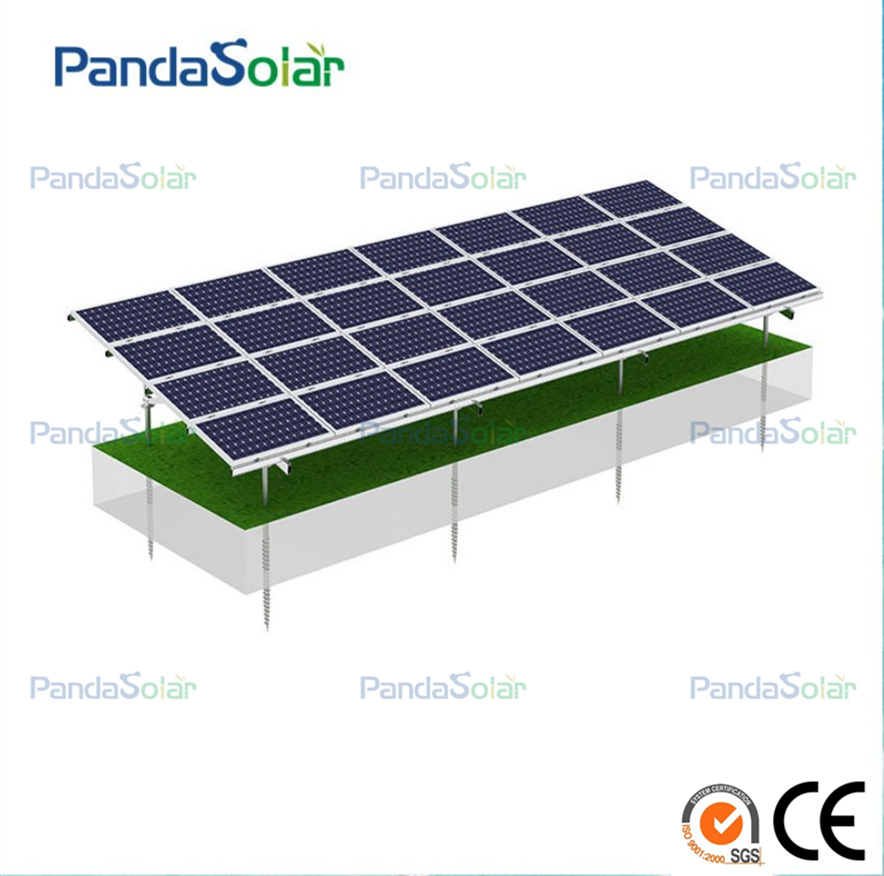

STEPS 04
Install solar panels on the rails by solar mid clamps and end clamps. Finally, a completely solar ground mounting finished.

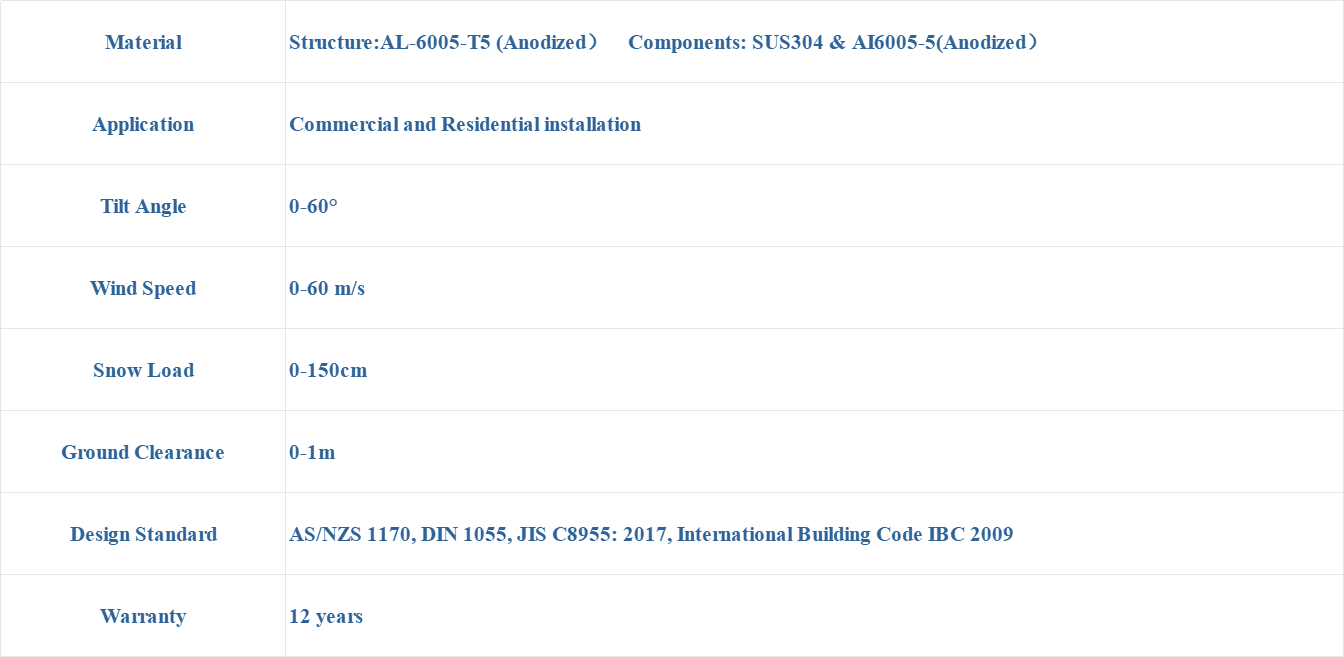

Technical Specifications:
Our Advantages:
1.Highly pre-assemble
2.Great flexibility in different designs
3.Long service life
4.Accept OEM
5.Factory Price
What can we offer?
1.Professional Design Team & Free Design （time-limited activity）
2.Our sales team is equipped with the knowledge and expertise to understand your specific business needs.
3.We are pleased to offer products of the highest quality at the most competitive factory price.
4. Product Certifications & Complete After-Sales Guarantee
Workshop-Aluminum Material:
PandaSolar has a professional aluminum alloy product processing workshop, cutting, drilling, stamping, forging and other work are completed independently.
Professional production team can accept products with high customization/precision requirements.
Workshop-Steel Material:
PandaSolar has a professional steel/Magnesium aluminum zinc/S350GD/S450GD processing workshop as well, 6 production lines, and several molding machines. According to different projects, it can complete cutting and holes processing, with productivity of 40-50MW per month.
Certificates
FAQ:
♥: What's your delivery time?
A: 7-15days, for customized product the lead time will be longer, about 25 days, because of making new model. Urgent order is accelerated production.
♥: Can you send the samples?
A: Yes, we provide free samples for your test.
♥: How do you ship the goods and how long does it take to arrive?
A:For sample package, we usually ship by DHL or FedEx. It will take 3-5 days to arrive. For big orders, we usually ship by sea, it will take 7~30 days to arrive, depends on distance.
♥: Are you manufacturer?
A: Yes, we have own factory located in Xiamen China and our production experience is more than 12 years.
♥: Do you have OEM service?
A: Yes, we accept OEM service.
♥: How can I get the best price?
A: Send an inquiry to us and our experts will offer a satisfactory quotation to you according to your requirement.
♥: How about your after-sale?
A:We will be responsible for any complaints from our customers (response immediately when we received it, within 3 hours) and would like to help our customers to solve any problems what they meet.
